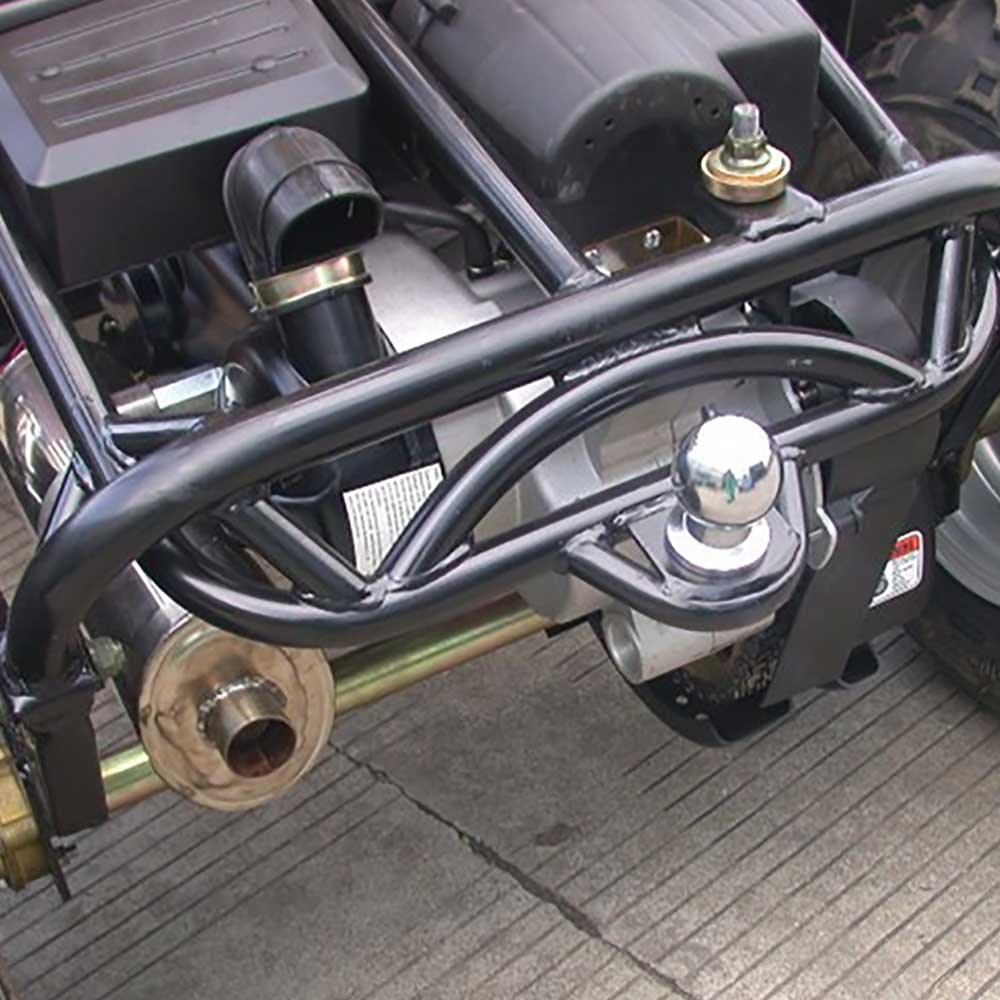

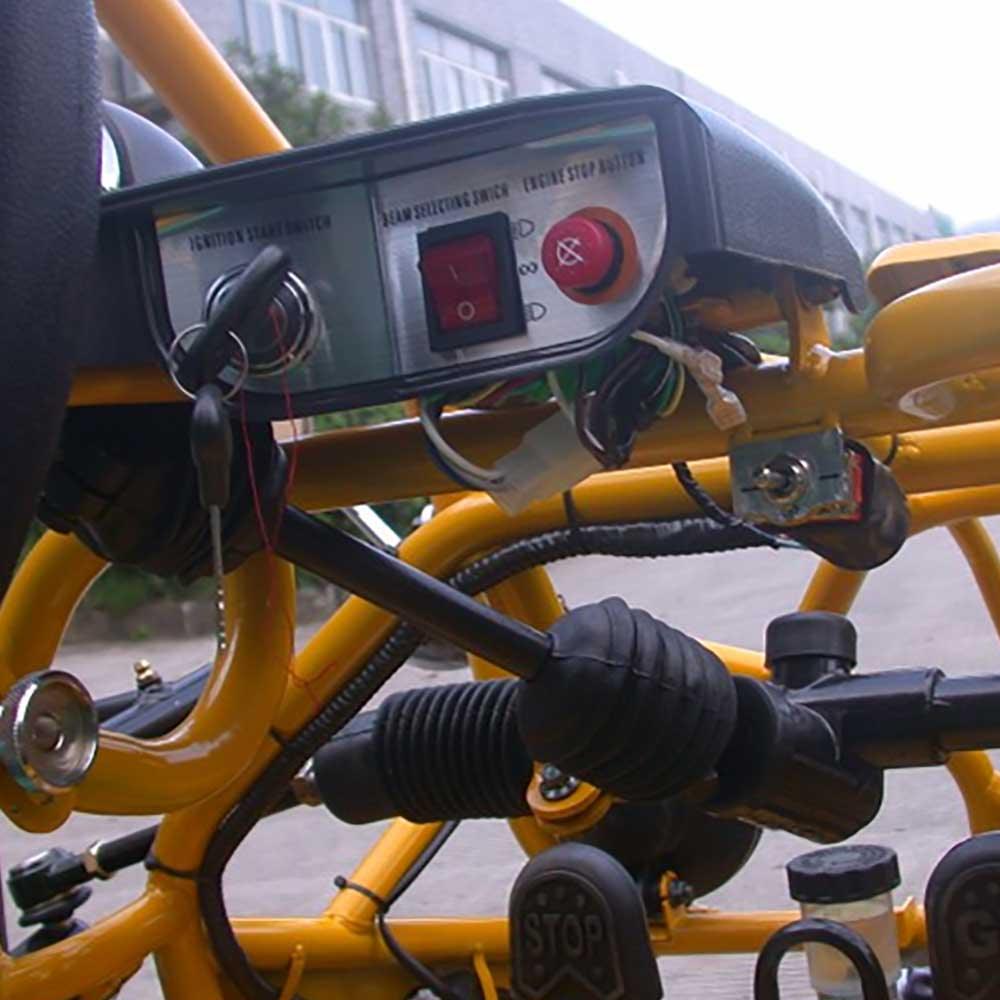

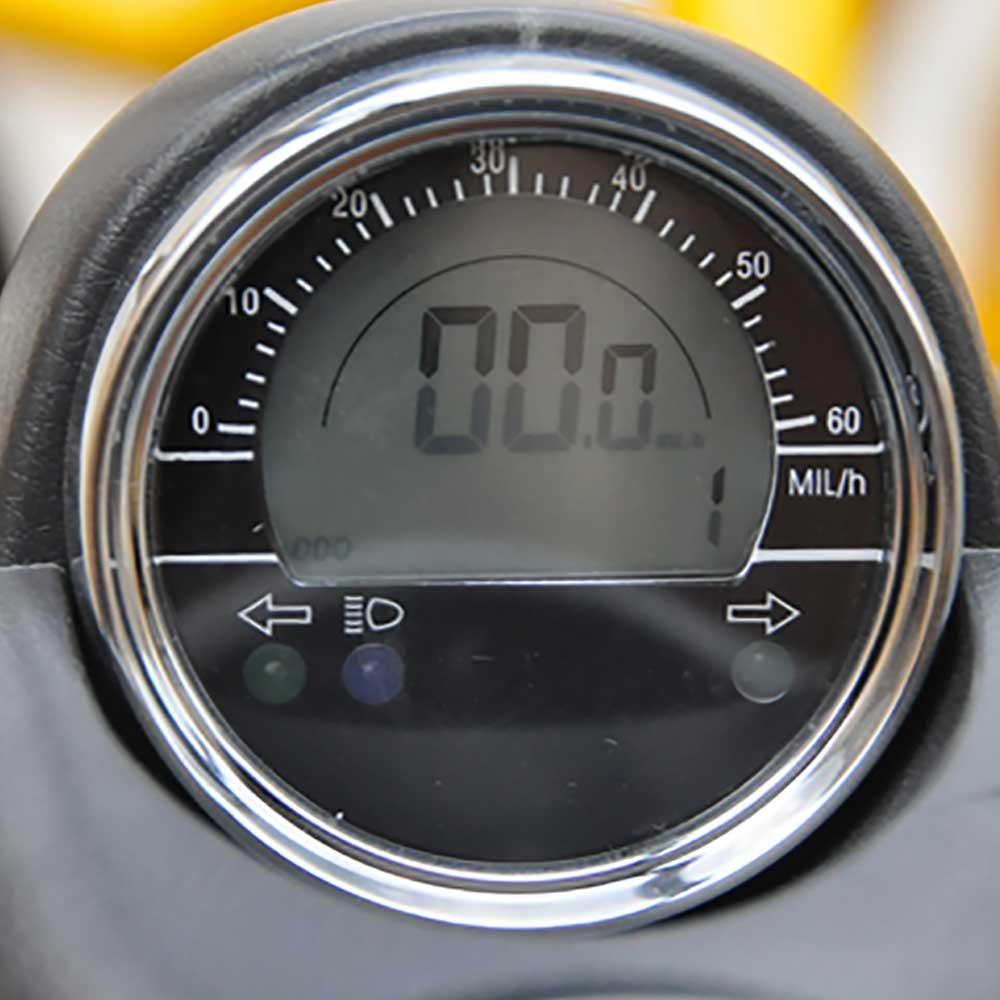

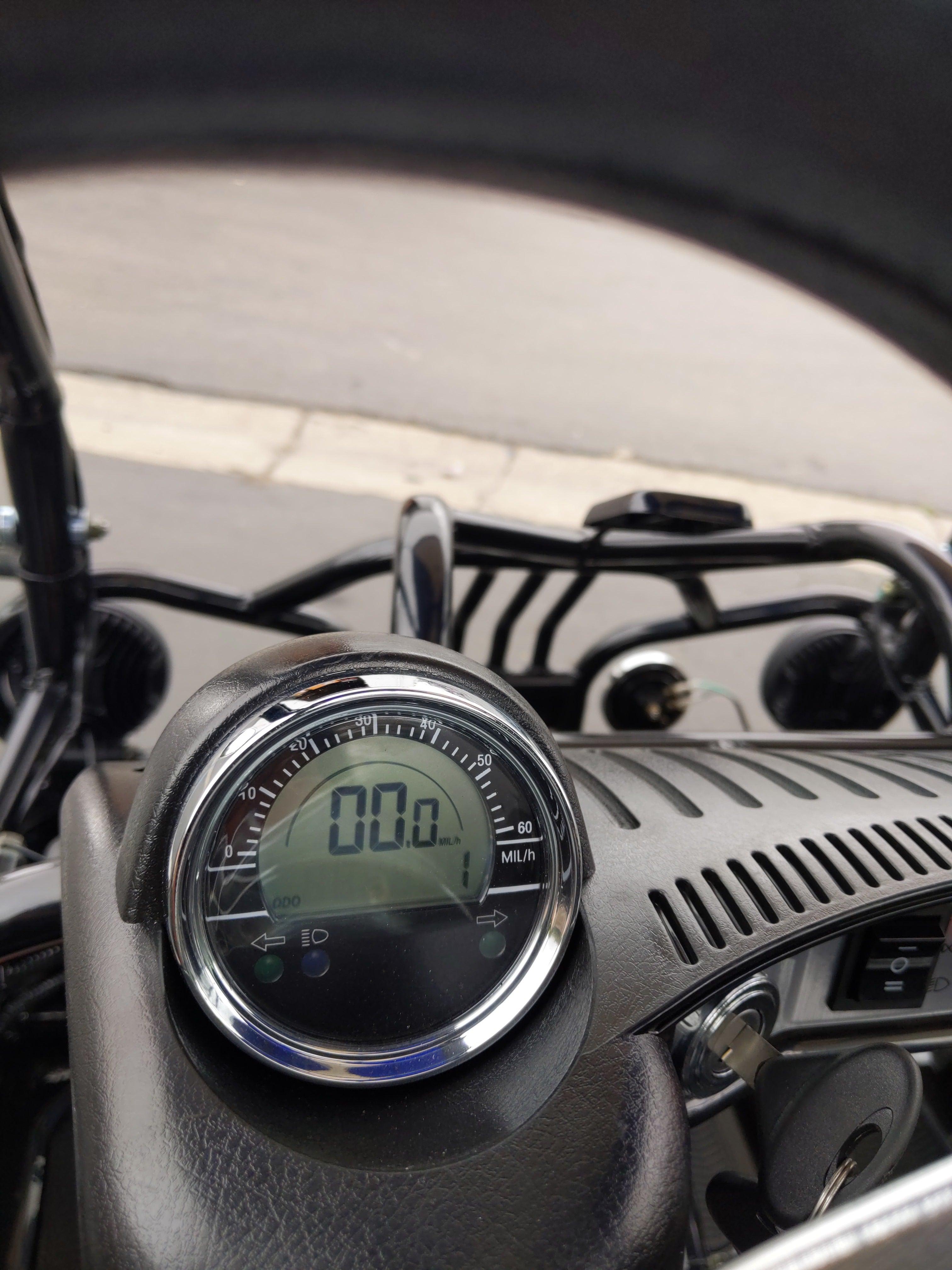

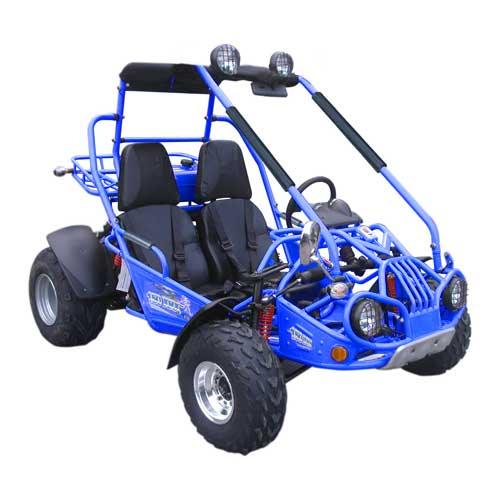

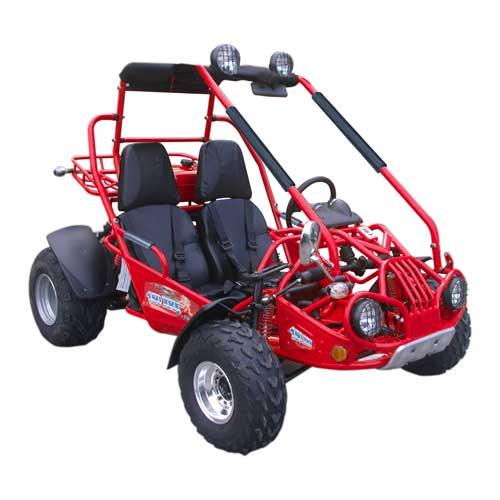

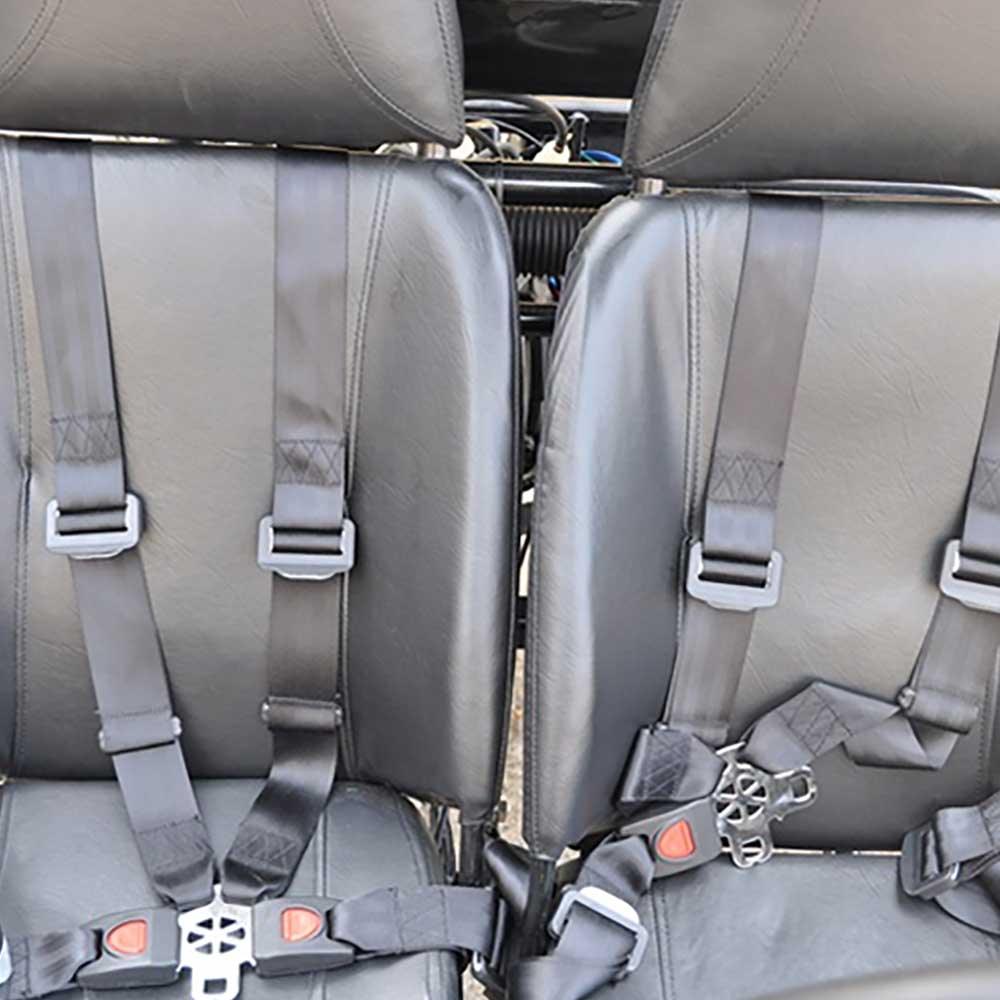

Affordable FUN the new Trail Master 200 XRX Go-Kart with premium features including polished aluminum wheels, a digital speedometer/odometer, top mounted hunting lights and a bikini sunshade top! But it's not just for show. Underneath all that glitz is a rugged, tubular steel frame with top brush guard, side rails and an enclosed belly pan to take the abuse of harsh off-roading. Power comes from a 169cc GY6 clone technology engine mated to an automatic CVT clutch for excellent low-end torque. There's enough horsepower to haul light loads on the rear utility rack or to pull light-duty trailers with the included ball hitch. Driving is effortless and fun with electric start, rack-and-pinion steering, convenient reverse shifting, easily reachable, dash-mounted controls and dual sport bucket seats with 5 point harnesses. The drivers seat adjusts from 39 to 43 inches to the pedals while the steering tilts to accommodate drivers of any size. Center and side mount rear view mirrors, front and rear hydraulic disc brakes, high/low beam headlights and turn signals add an extra measure of safety. The dual A-arm front and swing-arm rear suspension system provides excellent handling and maneuverability, and the optimized wheelbase keeps turning radius to a minimum.

EPA certificated Off-Road Legal 49 States - Not California Legal

Average delivery time for most of the nation: west coast 2-4 business days | east coast 5-10 business days after ordering. Have questions before you decide? Call us at 714.888.5114 or text 714.888.5114 ... licensed dealer offering local NV, GA pickup or shipping nation wide.

Need this unit shipped to Alaska, Hawaii, or Puerto Rico? Contact us.

IN-CRATE WARRANTY 30-DAYS NON-WEARABLE PARTS-ONLY NO LABOR.

Specifications

• Model: Trail Master 200 XRX
• Engine: single-cylinder, 4-stroke, air-cooled GY6 clone with internal reverse
• Displacement: 169cc
• Transmission: Automatic CVT with reverse

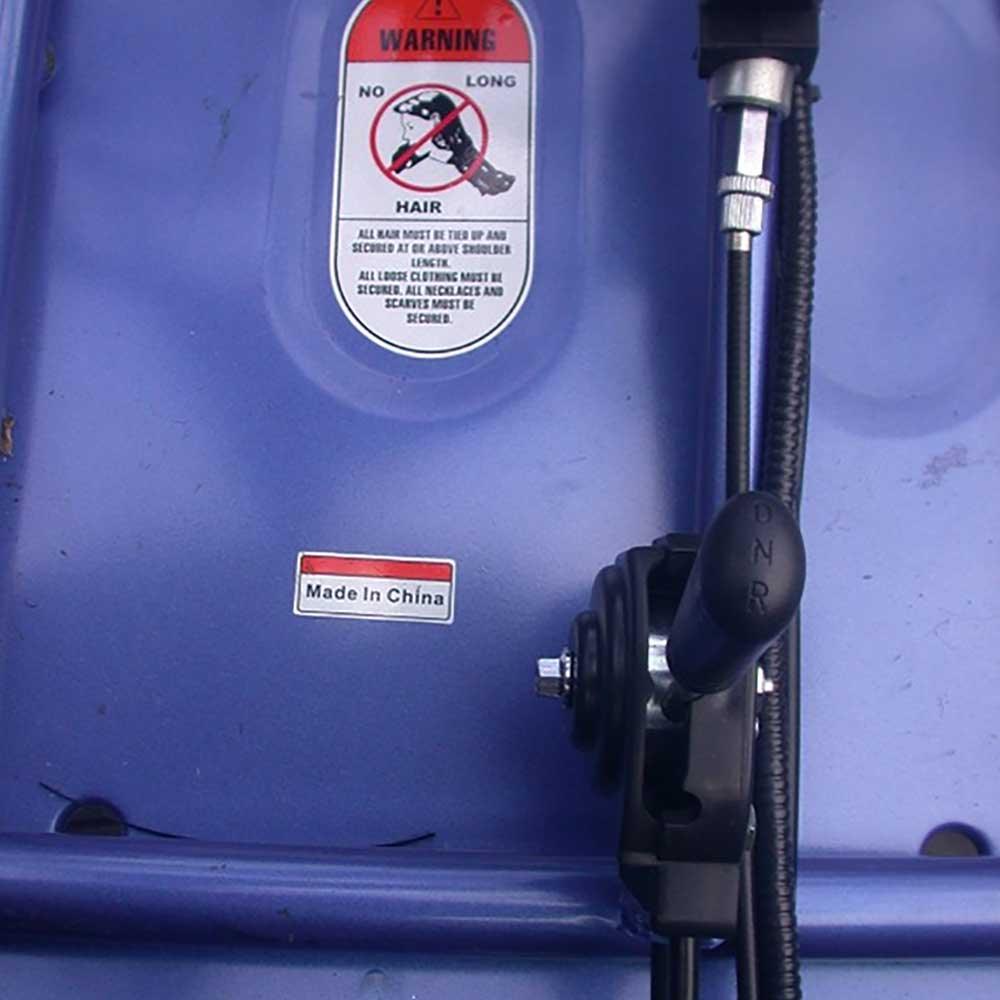

• Gearing: F-N-R
• Max HP: 8.2hp/7500rpm
• Max torque: 7 lb ft/6000rpm
• Bore x Stroke: 2.26x2.28 inches
• Carburetor brand: Deli (Vacuum film)
• Engine oil: SAE 15W/40
• Ignition: CDI
• Battery: 12V 10Ah
• Starting system: Electric with kill switch
• Max speed: 35 mph
• Climbing ability: 12 degrees
• Fuel capacity: 2.25 gal

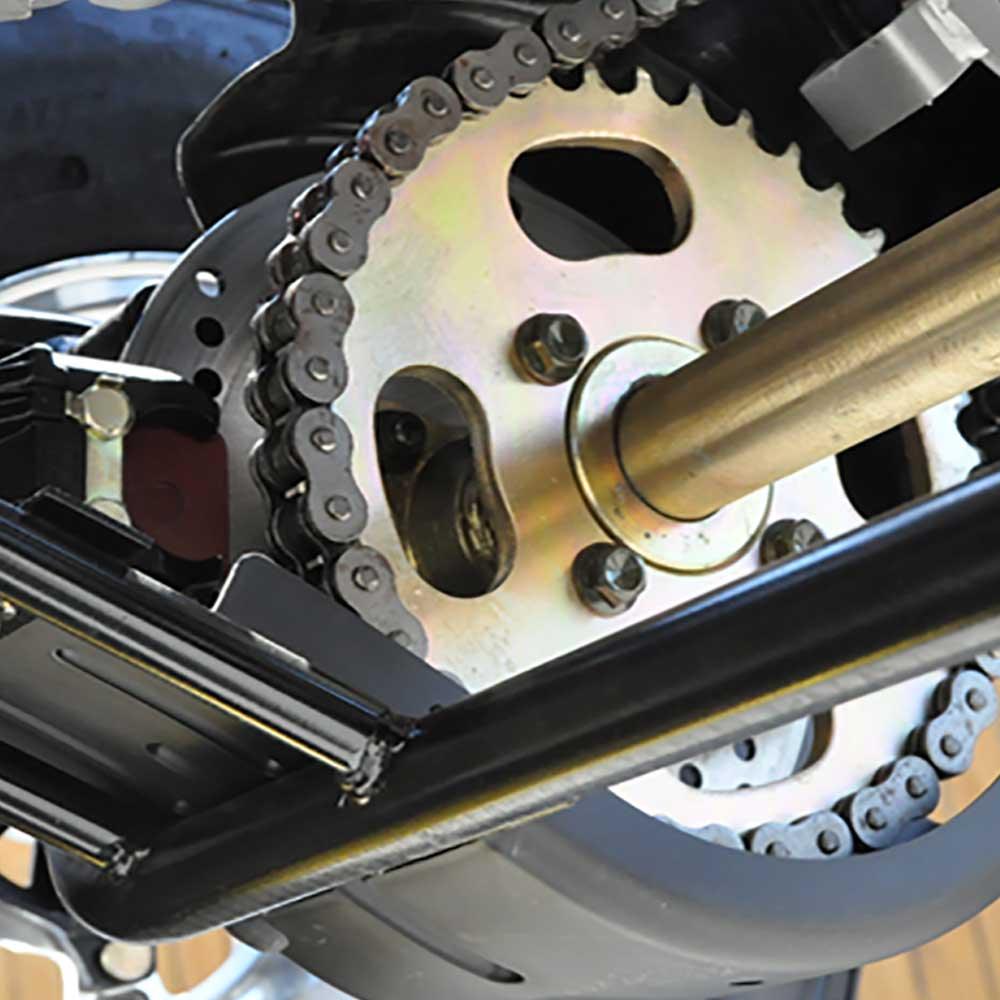

• Final drive: Chain / Dual wheel drive

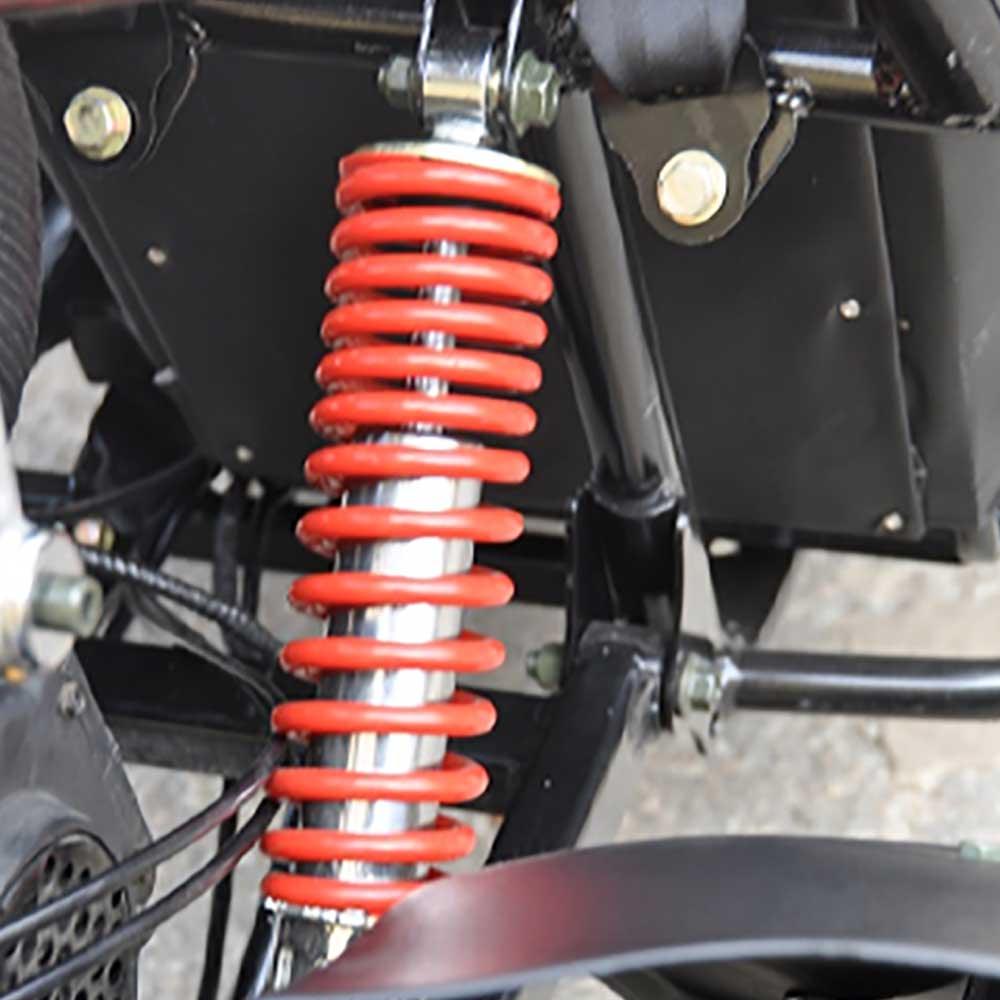

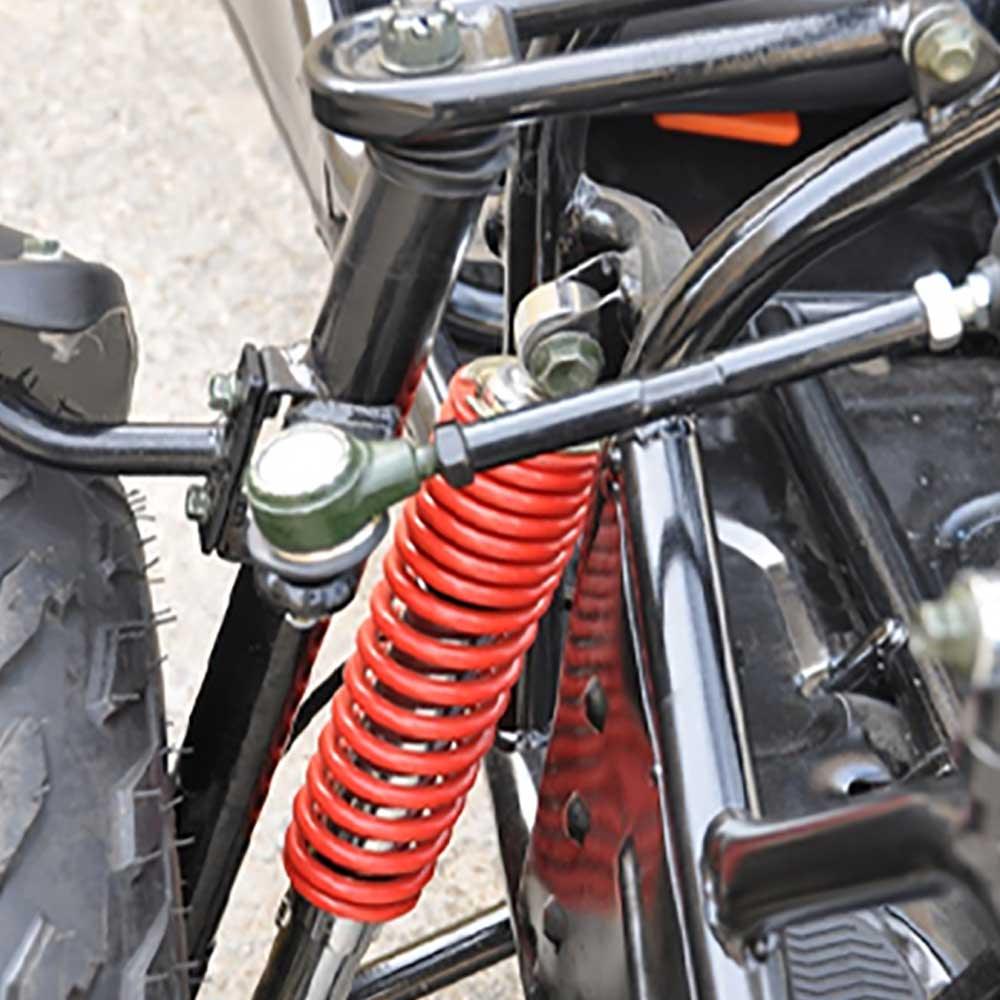

• Suspension (front/rear): Independent Dual A-arm / 4-point rear swing arm with heavy-duty coil-over shocks

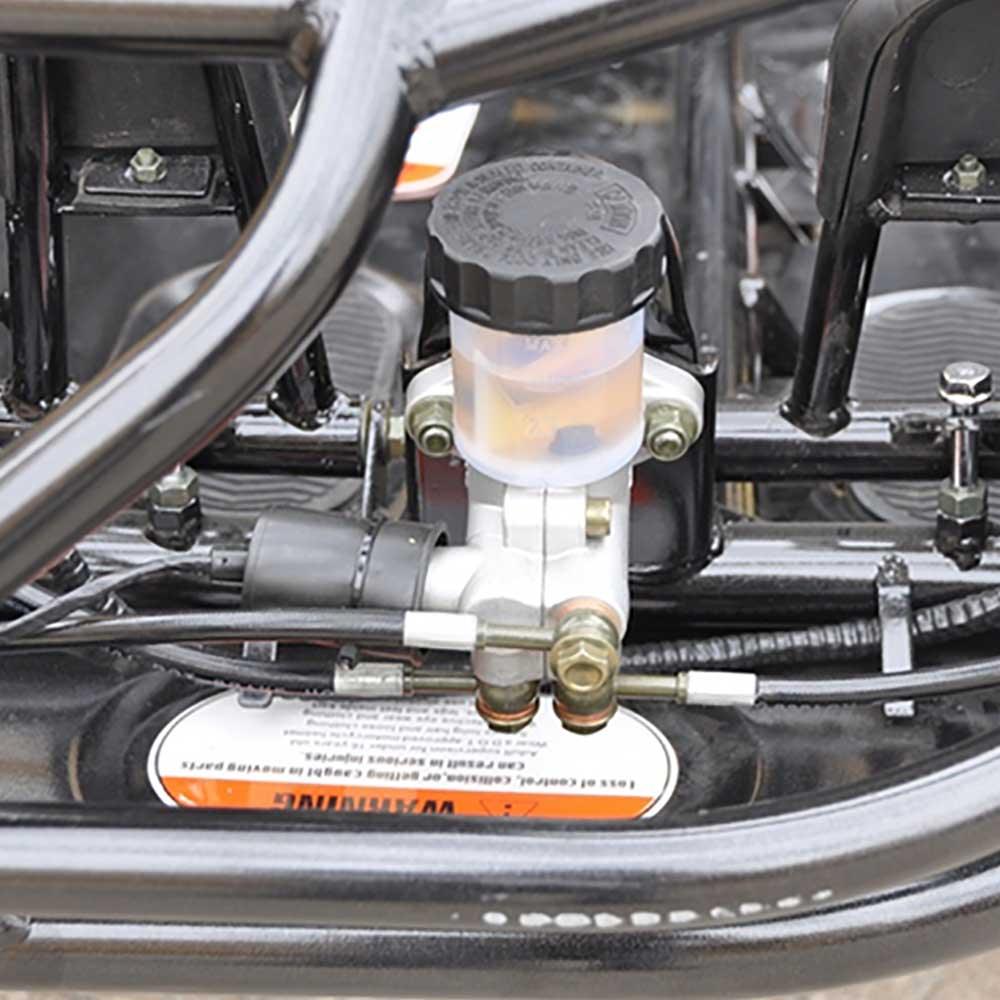

• Brakes (front/rear): Hydraulic Disc / Hydraulic Disc

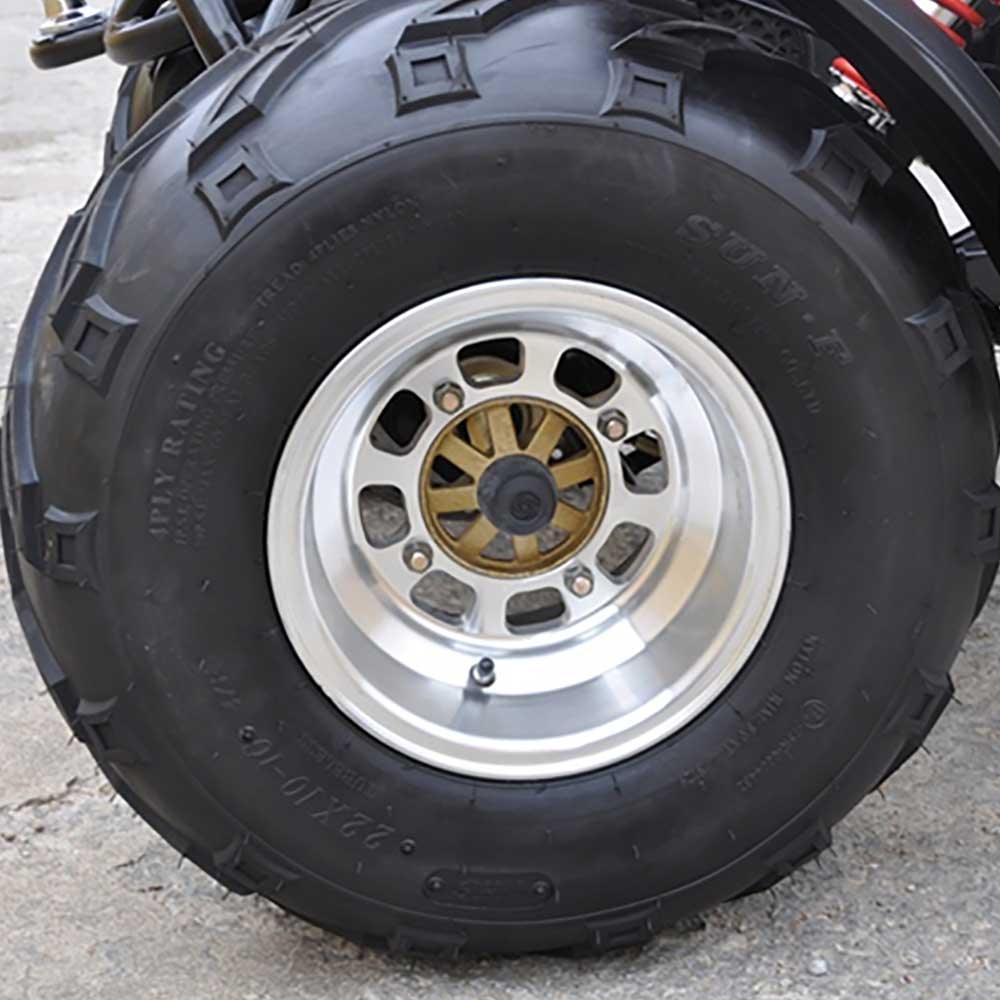

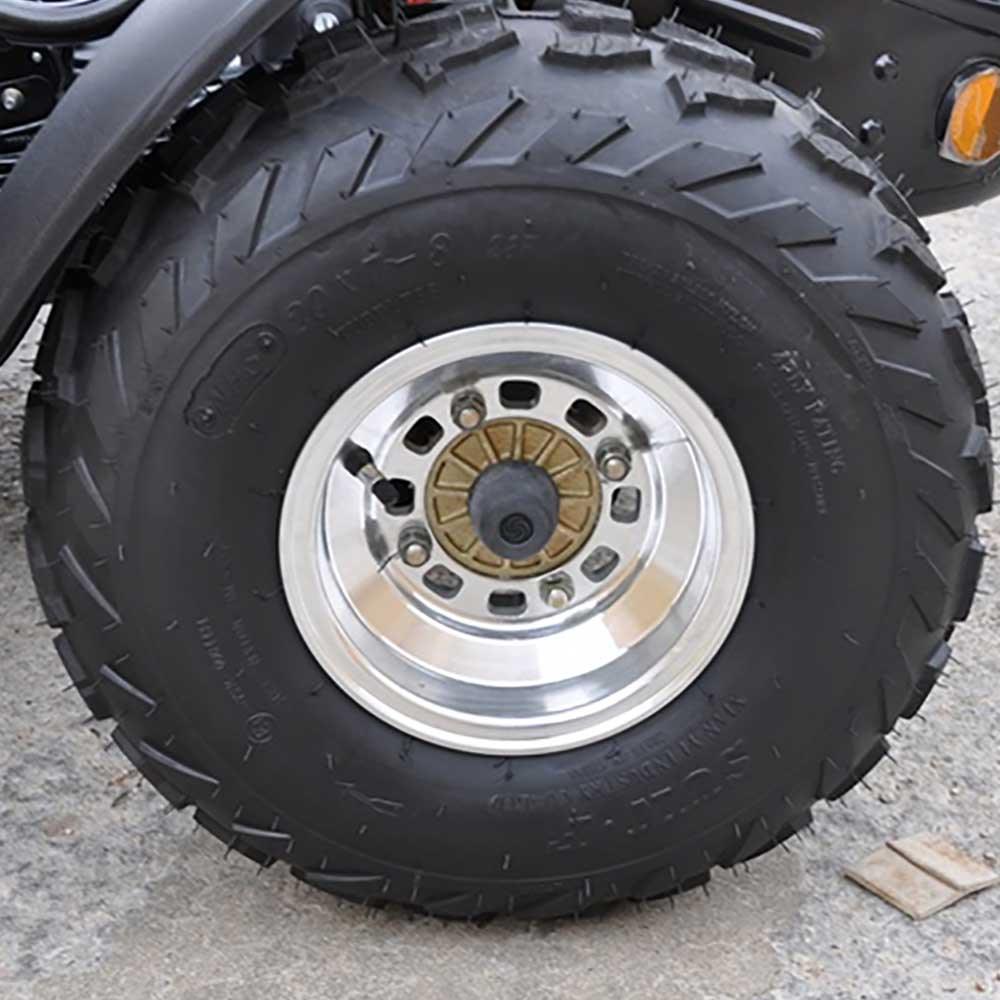

• Tires (front/rear): 20x7-8 / 22x10-10
• Wheels (front/rear): 7 inch Aluminum / 10 inch Aluminum

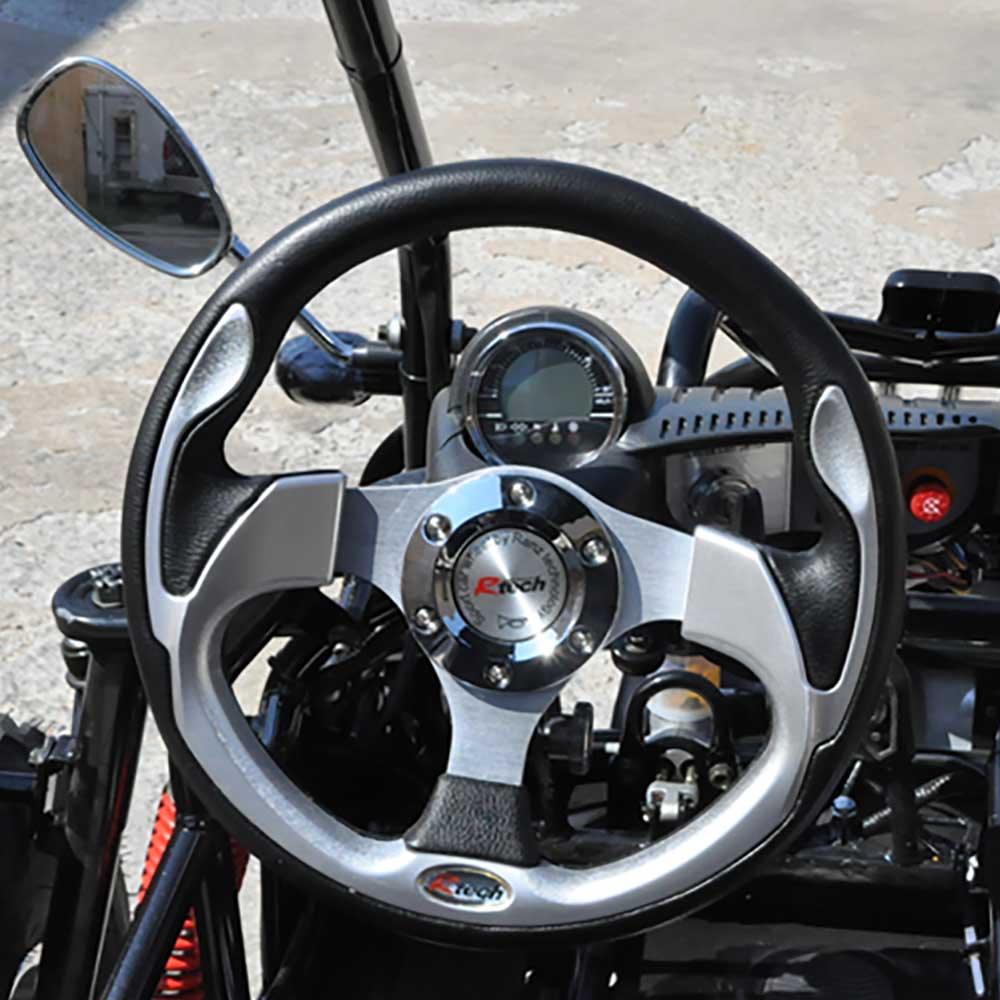

• Features: Polished aluminum wheels, Digital speedometer/odometer, Top hunting lights, Aluminum side mirrors, Turn signals, Adjustable sport steering wheel, Electric start, Four-point safety seatbelt, Individual sporting seats, Polished stainless steel muffler, High-low beam head light, Bikini sunshade top, Central rear view mirror, Rack-and-pinion steering, Parking brake, 4-wheel fenders, Trailer hitch, Large rear utility rack
• Max load: 500 lbs.
• Wheelbase: 59 inches
• Height to seat: 13.8 inches
• Pedal to seat distance: adjustable from 39 to 43 inches
• Min ground clearance: 6.7 inches
• Net Weight: 485 lbs.
• Gross Weight: 573 lbs.
• Dimensions (LxWxH): 85x53.1x57.5 inches
• Shipping Dimensions (LxWxH): 88x48x25 inches
• Configurations And Specifications Subject To Change Without Notice.
