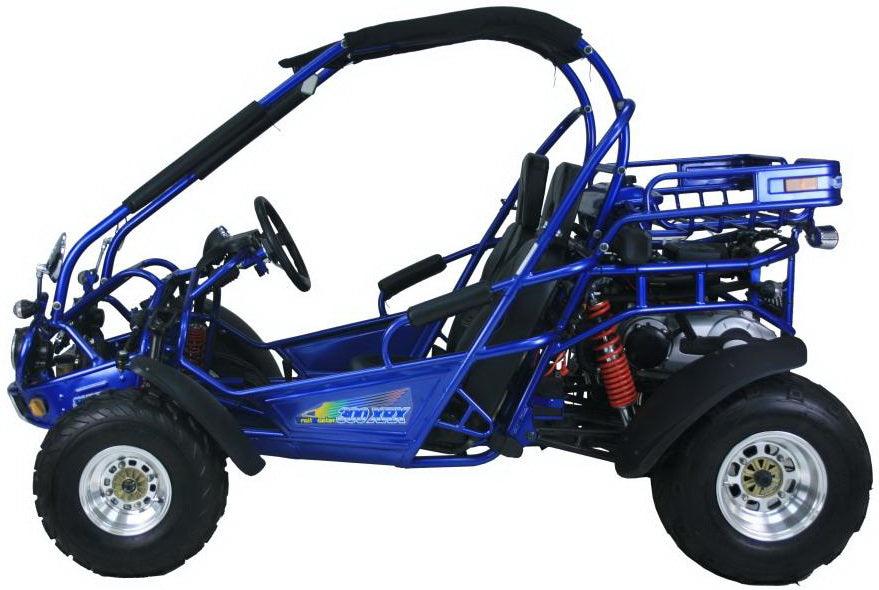

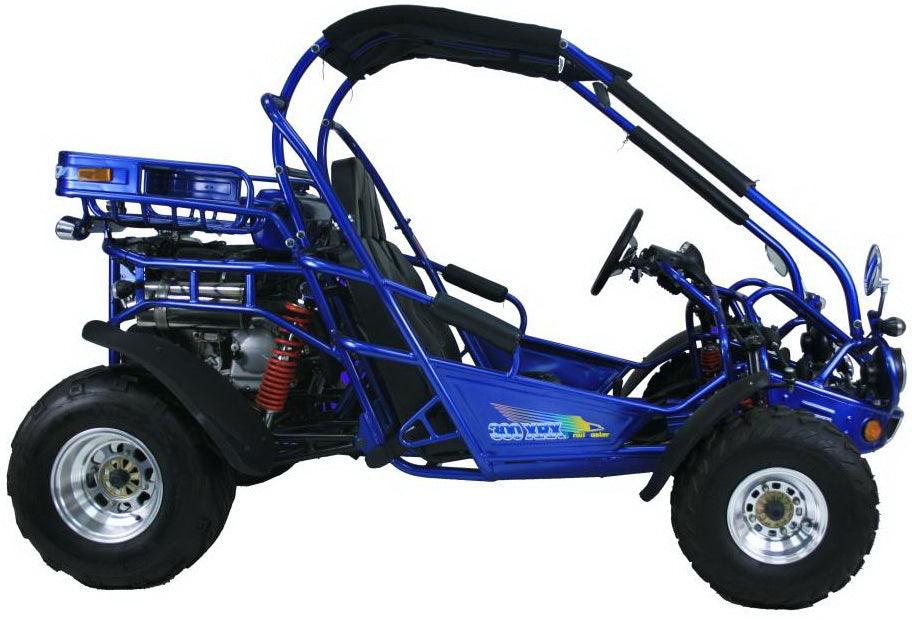

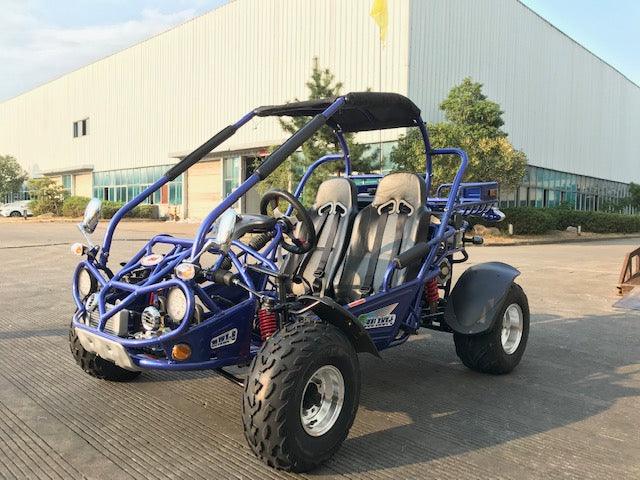

Announcing the New 300 XRX-E, now upgraded with Fuel Injection and LED Headlights! The TrailMaster 300 XRX-E Go Kart is designed to conquer the toughest terrain in style, featuring polished aluminum wheels, a digital speedometer/odometer, LED headlights, and a bikini sunshade top. Beneath its sleek exterior, a rugged tubular steel frame with a top brush guard, side rails, and an enclosed belly pan is built to endure harsh off-roading.
The heart of the 300 XRX-E is a powerful 17.4 HP, 300cc CVT fully automatic engine with reverse, and liquid-cooled EFI (Fuel Injection) technology. This setup delivers a top speed of 50 mph and exceptional low-end torque. With this much horsepower, you can easily haul loads on the rear utility rack or tow light-duty trailers using the included ball hitch.

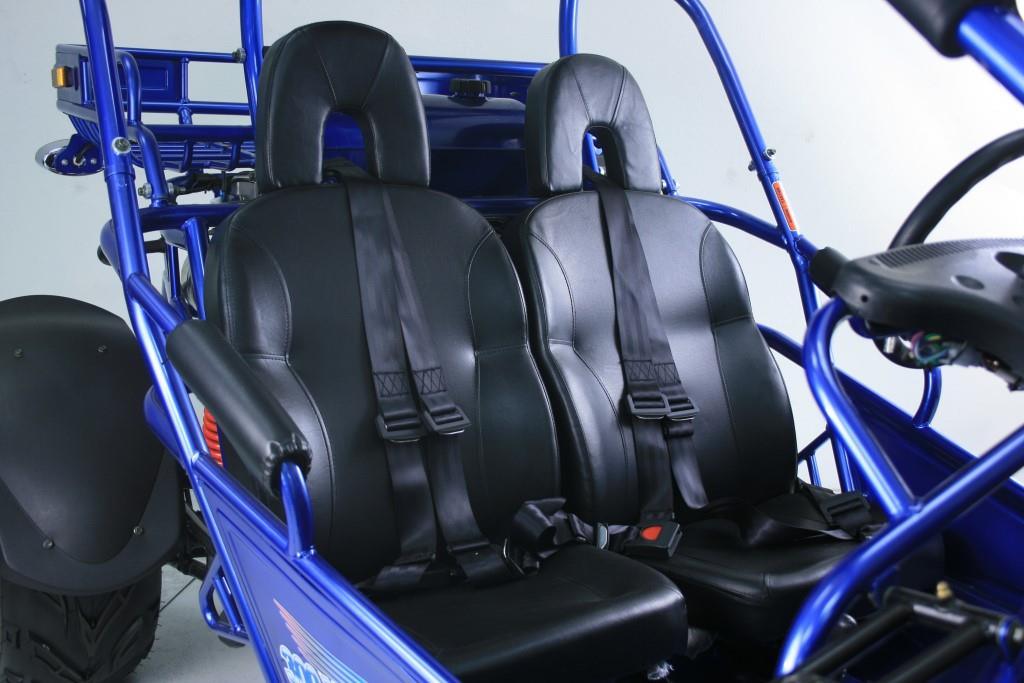

Driving the 300 XRX-E is effortless and fun, thanks to its electric start, rack-and-pinion steering, reverse shifting, dash-mounted controls, and dual sport bucket seats with 5-point harnesses. The driver's seat adjusts from 41 to 46 inches to the pedals, and the tilt steering column allows for a customized driving experience.
Safety is paramount with the inclusion of center and side mirrors, front and rear hydraulic disc brakes, high/low beam headlights, and turn signals. The dual A-arm front suspension and swing-arm rear suspension ensure excellent handling and maneuverability on any terrain.
The TrailMaster 300 XRX-E is the only 300cc go-kart on the market with such a comprehensive array of premium features, blazing new trails for off-road enthusiasts!
Key features:
- 17.4 HP Powerful 300cc CVT fully automatic w/reverse engine, Liquid cool
- EFI (Fuel injection)
- Shaft driven 4 wheel Ind. suspension
- Aluminum wheels
- Digital speedometer/odometer
- Stainless steel performance muffler
- Four-point safety seatbelt
- Electric start with kill switch
- Large tires with 20X7-8 in the front and 22X10-10 in the back, steel wheel
- Individual sporting seats

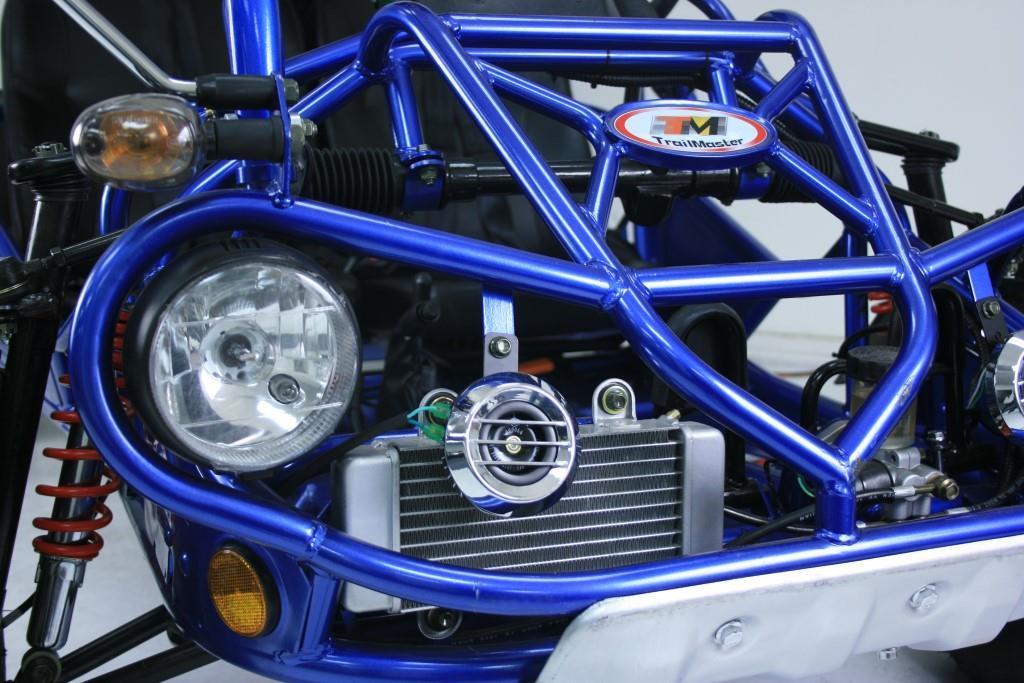

- LED head light
- 12 volt power supply
- Bikini sunshade top
- Adjustable driver seat: pedal to seat back adjustable from 41” to 46”
- Adjustable heavy duty front and rear shock absorber
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- Four-point harness seatbelt
- Parking brake
- 4-wheel fenders
- Turn signals
- Horn
- Trailer hitch
- Large rear utility rack
- Large gas tank
SPECIFICATIONS
| Certification: |
EPA certificated |
| Engine Type: |
4-stroke, single cylinder, water cooled |
| Displacement: |
300 cc |
| Fuel system: |
EFI |
| Max Horsepower: |
17.4hp/6500rpm |
| Max. Torque: |
16 lb ft/5000rpm |
| Bore Stroke: |
2.85x2.63 inches |
| Max speed: |
50 mph |
| Climbing Ability: |
18 degrees |
| Ignition: |
C.D.I |
| Starting System: |
Electric |
| Battery: |
12V 10Ah |
| Engine Oil: |
SAE 15W-40 |
| Gear oil: |
MoS2&W-2WD-4D |
| Clutch: |
Automatic CVT with reverse |
| Driveline / Driving wheel: |
Chain+Shaft / Dual wheel drive |
| Suspension F/R: |
Double A-arm / Independent Swing-arm |
| Brakes, F/R: |
Both hydraulic brakes, Disc |
| Tires F/R: |
20x7-8 / 22x10-10 |
| Fuel capacity: |
2.25 gal |
| Gross Weight: |
705 lbs |
| Net Weight: |
617 lbs |
| Max Load: |
500 lbs. |
| Wheelbase: |
66.1 inches |
| OA L x W x H: |
90.5x53.1x57.1 inches |
| Height to Seat: |
13.8 inches |
| Min Ground Clearance |
8.5 inches |
Configurations And Specifications Subject To Change Without Notice. “BV
POWERSPORTS, LLC”
