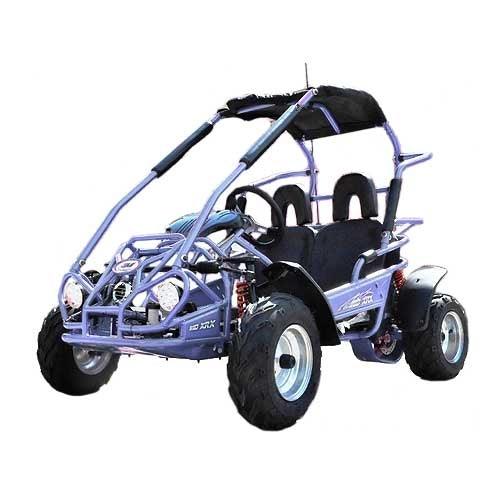

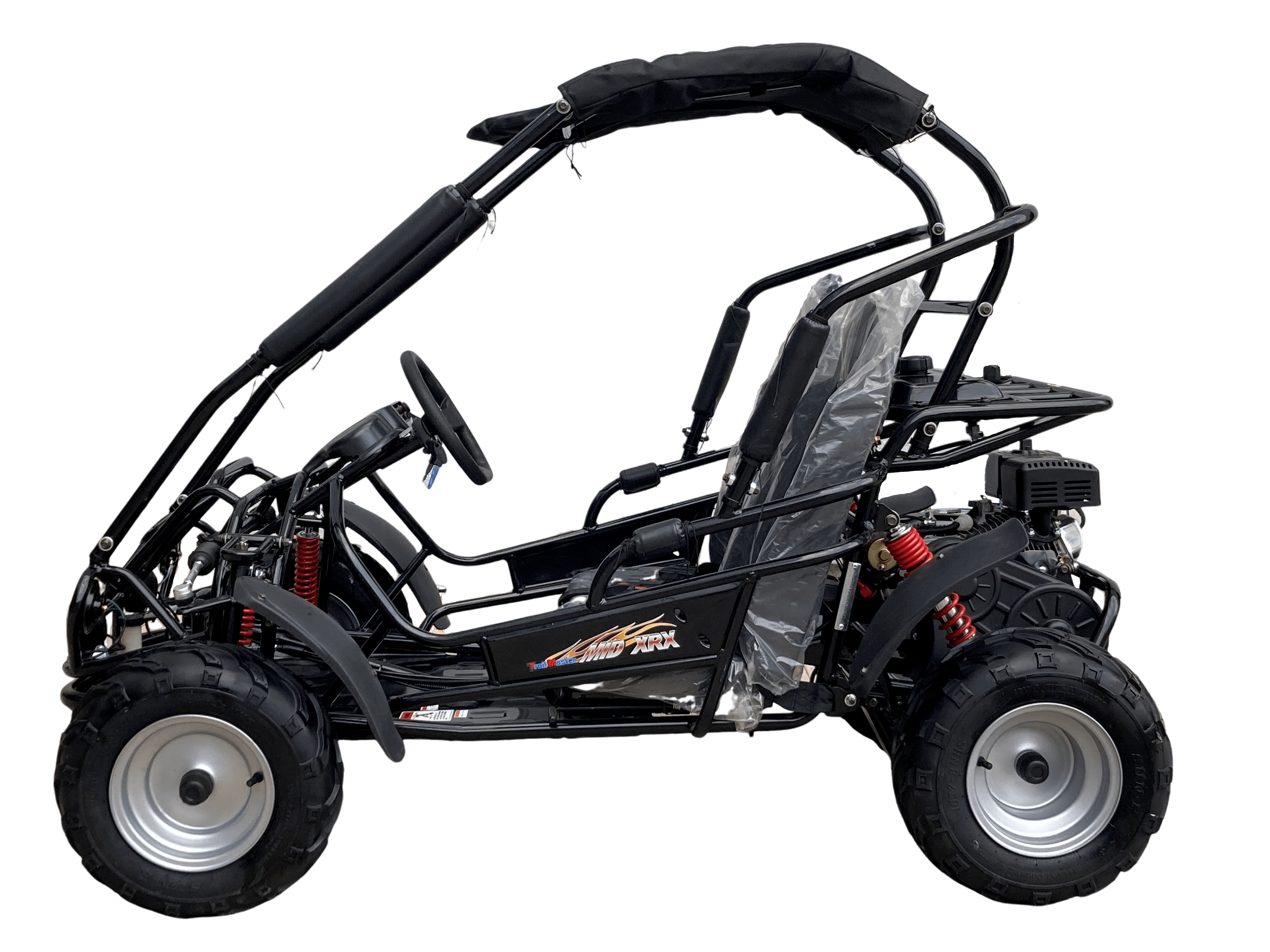

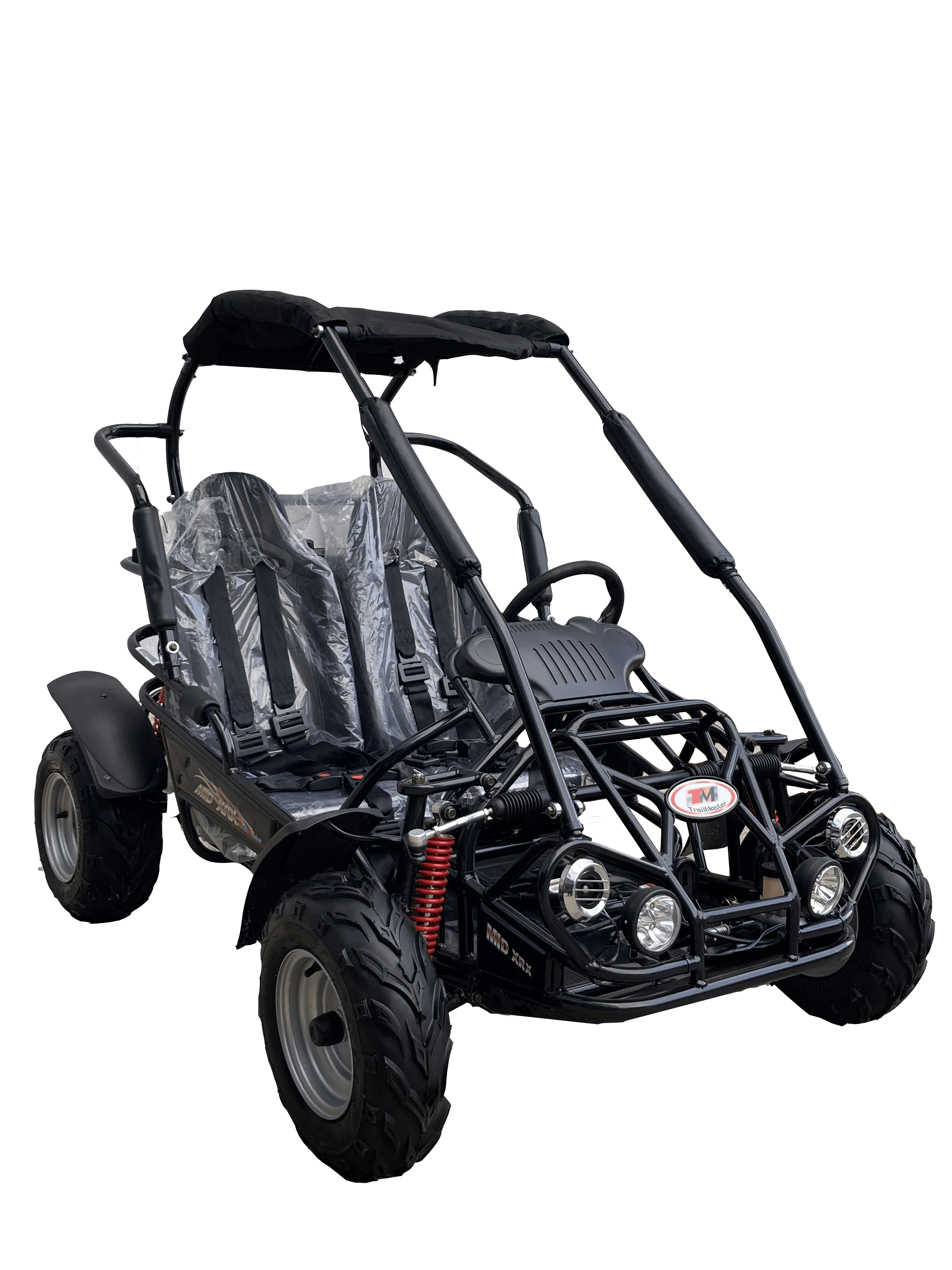

Upgrade your go-karting experience with the Trail Master MID XRX, a top choice for intermediate riders seeking more thrill and excitement. This exceptional go-kart offers plenty of fun for seasoned riders while being accessible to those advancing their skills.

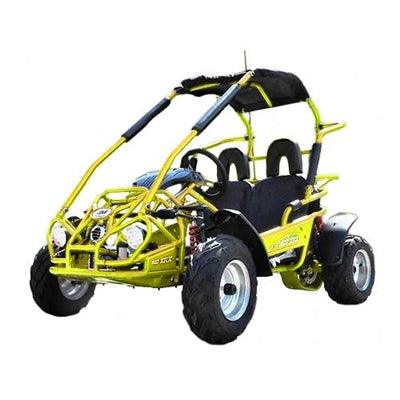

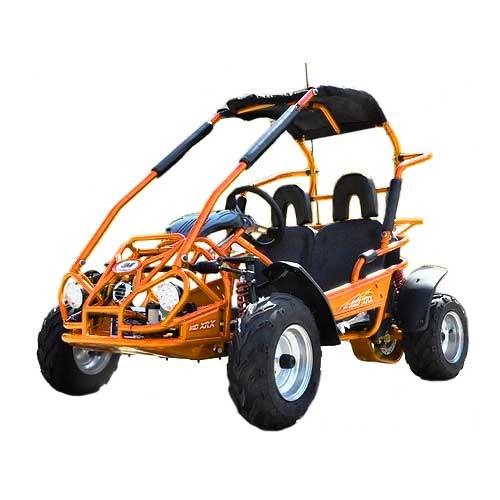

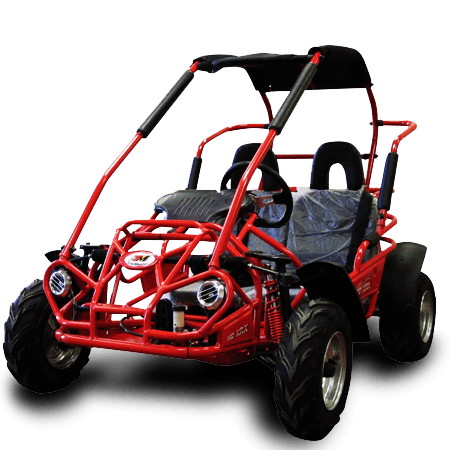

The MID XRX boasts a stylish and functional canopy design that not only provides protection from the sun’s heat and UV rays but also enhances safety when hitting speeds of up to 25 MPH. Available in six vibrant colors, this model ensures you ride in style without any regrets. The comfortable seats come with safety belts for both passengers, ensuring a secure and enjoyable ride.
With a weight capacity of up to 400 pounds, the MID XRX allows you to share the fun with friends. Its one-gallon fuel tank ensures easy and efficient refueling, perfect for a full day on the trails. The powerful four-stroke engine, hydraulic brakes, automatic CVT, and heavily treaded tires make it ideal for tackling tougher terrains.
While light bars and mirrors are not included, they can be added as accessories to customize your go-kart. The Trail Master MID XRX is the perfect blend of style, performance, and safety for those ready to take their go-karting adventures to the next level.
Key features:
-
Powerful 196cc 6.5HP OHV engine
- Electric start with pull start backup, can start without battery
- Torque converter CVT, more low-end torque
- Fully automatic No Reverse
- Manual choke operating from dashboard
- Big tires: Front 6x6-8; Rear 16x7-8
- All-wheel fenders
- Rack and pinion steering wheel
- Hydraulic disc brake
- Padding over roll cage
- Canopy top
- LED headlight
- Horn
- Individual sporting seats with 5pt seat belt
- Adjustable driver seat: pedal to seat back adjustable from 31.5"to 37"
SPECIFICATIONS
| Certification: |
EPA certificated |
| Engine Type: |
4-stroke, single cylinder, air cooled |
| Displacement: |
196cc |
| Max Horsepower: |
6.5hp/3600rpm |
| Max. Torque: |
9.6 lb ft/2500rpm |
| Bore Stroke: |
2.6x2.1 inches |
| Max speed: |
31 mph |
| Climbing Ability: |
12 degrees |
| Ignition: |
CDI |
| Starting System: |
Electric/Pull backup |
| Battery: |
12V 9Ah |
| Carburetor Brand: |
JF (RX) |
| Engine Oil: |
SAE 15W-40 |
| Clutch: |
Automatic CVT with reverse |
| Driveline / Driving wheel: |
Chain / Dual wheel drive |
| Suspension F/R: |
Double A-arm / double oil damped shock |
| Brakes, F/R: |
Hydraulic brake, Disc |
| Tires F/R: |
16x6-8 / 16x7-8 |
| Fuel capacity: |
1 gal |
| Gross Weight: |
386 lbs |
| Net Weight: |
330 lbs |
| Max Load: |
400 lbs |
| Wheelbase: |
48.4 inches |
| OA L x W x H: |
67x43.3x51.2 inches |
| Height to Seat: |
10.2 inches |
| Min Ground Clearance |
2.8 inches |
| Pedal to seat back distance: |
31.5-37 inches |
Configurations And Specifications Subject To Change Without Notice.
